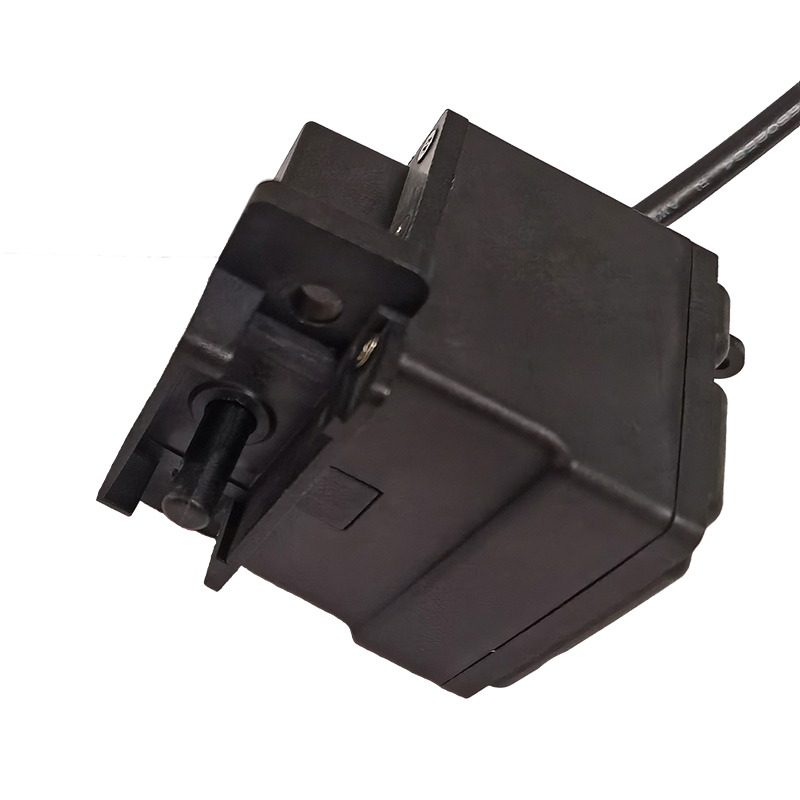

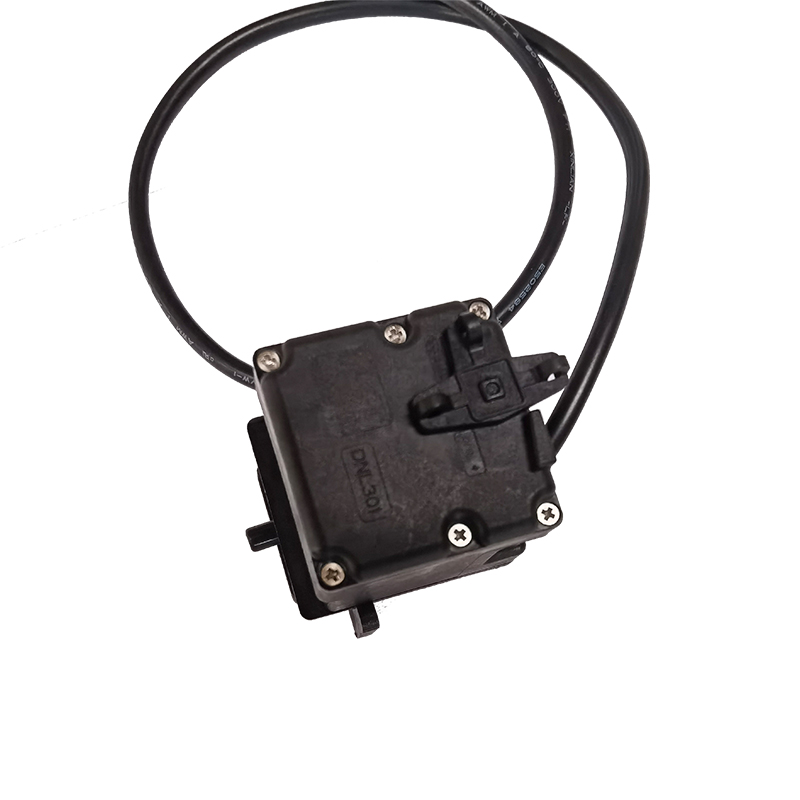

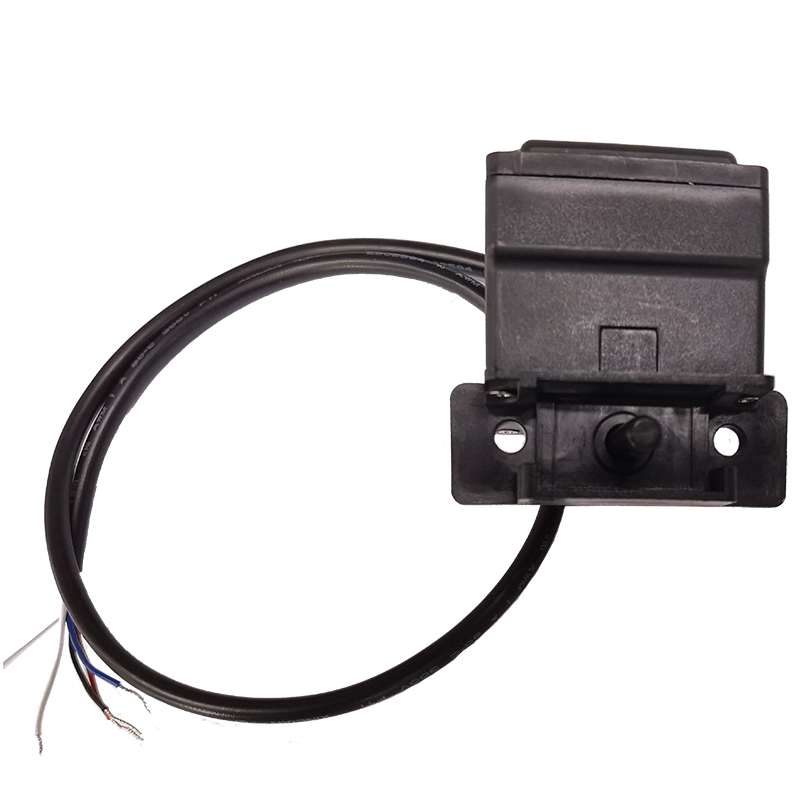

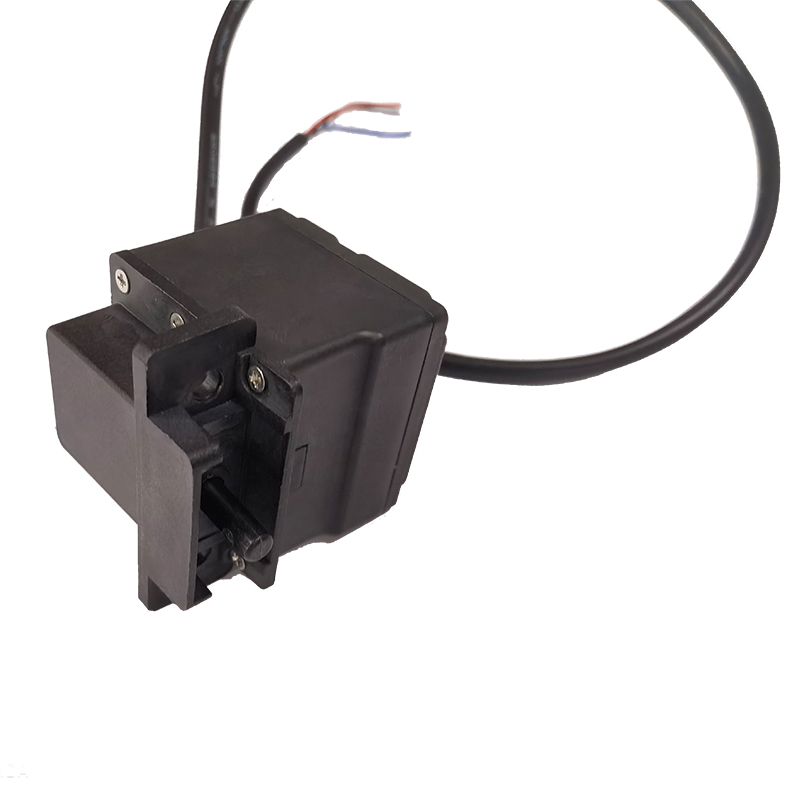

This specification is applied to DNL301-V5 electronic actuator used for EV charging sockets.
Specifications Movement
1. Features
Instantaneous power supply mode, low energy loss. Small size, suitable for small space installation.
2. Mechanical properties
Mechanical life: Operating cycle>30000 times
3. Environmental Performance
Operating temperature: -40℃ ~+ 85℃
4. Applied materials
Case Material: Thermoplastic, flame retardant grade IEC IP55.
5. Electrical performance
| Current | ≤200mA(12V) |
| Rated voltage | 12V |
| Voltage range | 10.5V～13.5V |
| Insulation strength | ≥ 100MΩ, 600Vd |
| Degree protection provided by enclosure | IP54 |
| Drive time | ≤600ms(12v) |
| Locking lever retention force | ≥ 80N |
| Locking lever push force | >10N (12V) |
| Manual unlocking pull | ≤5N |
| Maximum power on time | 3s |
6. Model selection and the standard wiring
Switch wire and motor wire use 1007-20AWG wire harness, 4 PIN colour.
NOTE: Wires should not be dragged.
